小技巧：同花顺分时显示概念+涨停变色主图设置

admin · 发表于 2024-4-19 15:53:48

小工具/同花顺主图

之前一直分享的通达信相关技术指标，也有很多朋友用的同花顺看盘，平时我自己看盘通达信和同花顺都在用，今天我就给朋友们分享一个我用的笔记多的主图，主要是方便同花顺显示概念和涨停变色。

看盘的时候还是方便一些，不用按F10 就知道个股概念以及板块。涨停板变色，突出大阳、大阴线，个股股性好坏，一眼就能看出来。涨停多肯定就是股性好

朋友们记得点赞+在看+分享支持仓哥，将带来更多的评测。

指标千千万，专业评测此一家。

设置步骤如下：

一、同花顺分时图：

1、在同花顺找到分时主图，点击黄色的分时均线，出现白色的点点后表示已经选中

2、鼠标右键就会显示上图，点击修改分时走势-更多设置：

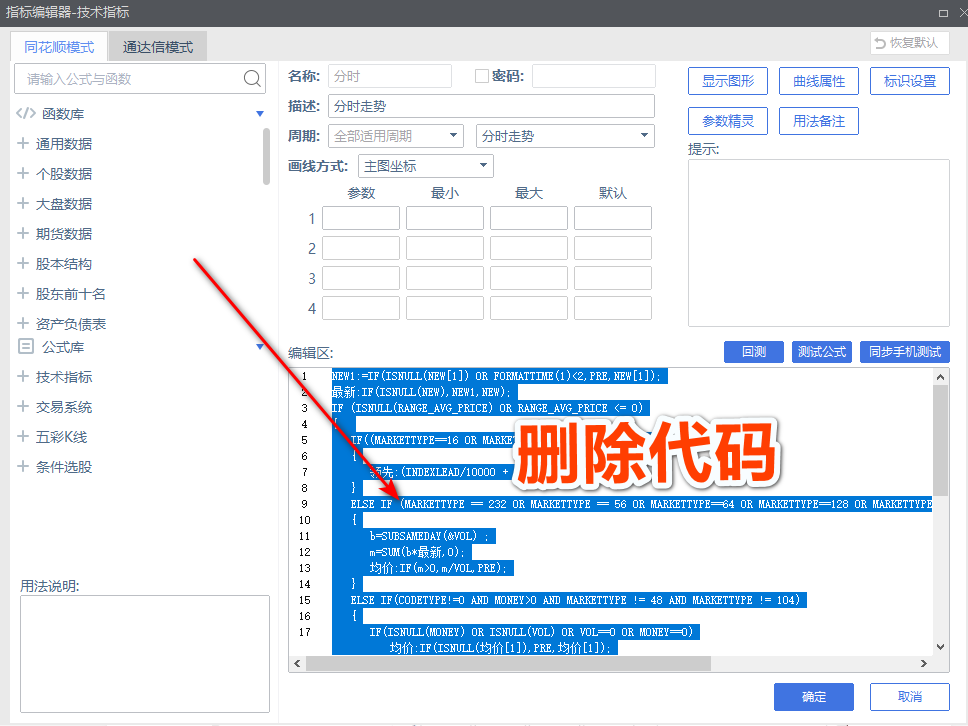

3、这下面图标中删除原来代码删掉，

4、复制下面代码，测试公式没问题，确定。

5、公式源码

S1:=BARSLAST(FORMATTIME(1)=1);

竞额:=REF(MONEYFS,S1)/10000;

竞量:=REF(VOL,S1)/100;

DRAWTEXT_FIX(ISLASTBAR,0.65,0.90,0,"竞价金额:"+TOSTRING(竞额,1)+'万'),coloryellow;

DRAWTEXT_FIX(ISLASTBAR,0.65,0.84,0,"竞价手数:"+TOSTRING(竞量,0)+'手'),coloryellow;

上涨家数:=INDEXDATA("1A0002",&RISECOUNT) + INDEXDATA("399002",&RISECOUNT);

下跌家数:=INDEXDATA("1A0002",&FALLCOUNT) + INDEXDATA("399002",&FALLCOUNT);

涨停:=INDEXDATA("1A0002",&RISELIMITCOUNT) + INDEXDATA("399002",&RISELIMITCOUNT);

跌停:=INDEXDATA("1A0002",&FALLLIMITCOUNT) + INDEXDATA("399002",&FALLLIMITCOUNT);

涨:="涨:"+上涨家数+"涨停（"+涨停+"）";

DRAWTEXT_FIX(ISLASTBAR,0.85,0.65,0,涨),colorred;

跌:="跌:"+下跌家数+"跌停（"+跌停+"）";

DRAWTEXT_FIX(ISLASTBAR,0.85,0.70,0,跌),colorgreen;

DRAWTEXT_FIX(1,0.85,0.80,0,'流通股:'+TOSTRING(SHGZG/100000000,2)+'亿股'),coloryellow;

DRAWTEXT_FIX(1,0.85,0.85,0,'实际股:'+TOSTRING(ZYLTGB/100000000,2)+'亿股'),colormagenta;

DRAWTEXT_FIX(1,0.85,0.90,0,'流通市值:'+TOSTRING(LTSZ/100000000,2)+"亿"),coloryellow;

自由市值:=TOSTRING(NEW*ZYLTGB/100000000,2);

DRAWTEXT_FIX(ISLASTBAR,0.85,0.95,0,"实际市值："+TOSTRING(自由市值,0)+'亿'),coloryellow;

DRAWTEXT_FIX(1,0.85,0.20,0,'净利润：'+TOSTRING(JYLX ,0)+''),colorcyan;

DRAWTEXT_FIX(1,0.85,0.24,0,'每股收益：'+TOSTRING(MGSYX,0)+'元'),colorcyan;

换手:=TOSTRING(V/ZYLTGB*100,2);

DRAWTEXT_FIX(ISLASTBAR,0.25,0.90,0,"真实换手："+TOSTRING(换手,0)+'％'),colorcyan;

成交:=TOSTRING(MONEY/100000000,2,);

DRAWTEXT_FIX(ISLASTBAR,0.39,0.90,0,"实时成交："+TOSTRING(成交,0)+'亿'),colorlired;

DRAWTEXT_FIX(1,0.65,0.95,0,'地域:'+BLOCK(2,0)),colorred;

DRAWTEXT_FIX(1,0.25,0.65,0,'概念:'+BLOCK(3,5)),colormagenta;

DRAWTEXT_FIX(1,0.25,0.95,0,'行业:'+BLOCK(0,0)+'*/*'+BLOCK(1,0)),colorred;

最新:IF(ISNULL(NEW),PRE,NEW);

IF (ISNULL(RANGE_AVG_PRICE) OR RANGE_AVG_PRICE <= 0)

{

IF (MARKETTYPE == 232 OR MARKETTYPE == 56 OR MARKETTYPE==64 OR MARKETTYPE==128 OR MARKETTYPE == 80 OR MARKETTYPE==88 OR (VOL > 1 AND VOL<100))

{

b=SUBSAMEDAY(&VOL) ;

m=SUM(b*最新,0);

均价:IF(m>0,m/VOL,PRE);

}

ELSE IF(CODETYPE!=0 AND MONEY>0 AND MARKETTYPE != 48)

{

IF(ISNULL(MONEY) OR ISNULL(VOL) OR VOL==0 OR MONEY==0)

均价

RE;

ELSE IF(VOL==VOL[1] OR MONEY==MONEY[1])

均价:均价[1];

ELSE

均价:MONEY/VOL;

}

ELSE IF (MARKETTYPE == 176)

{

b=SUBSAMEDAY(&MONEY);

m=SUM(b*最新,0);

IF(m>0)

均价:m/MONEY;

}

ELSE

{

均价:RANGE_AVG_PRICE;

}

RETURN;

hx_star;

hx_star_p;

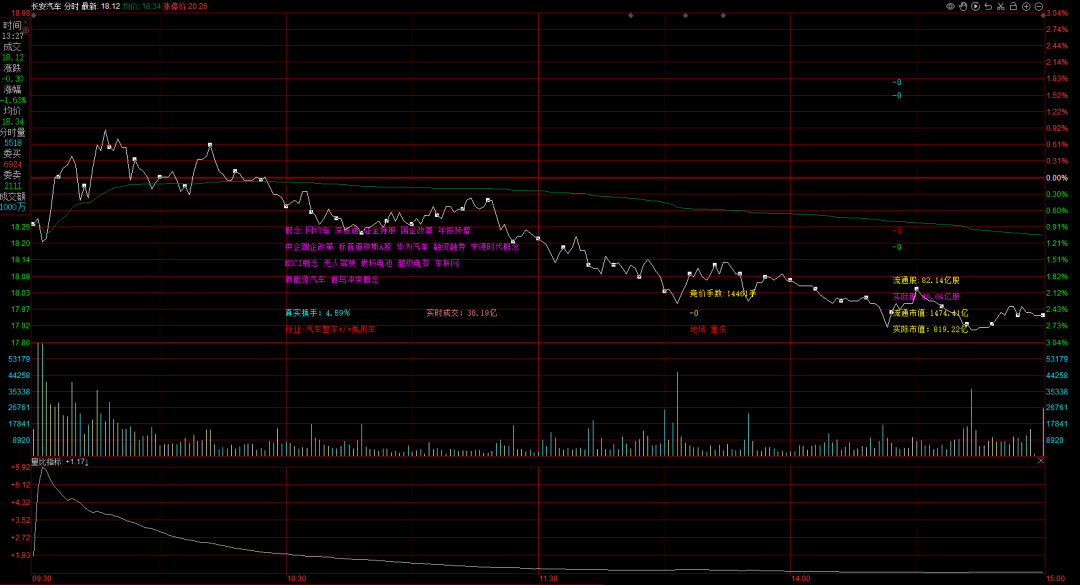

6、效果图如下

二、同花顺日线主图：

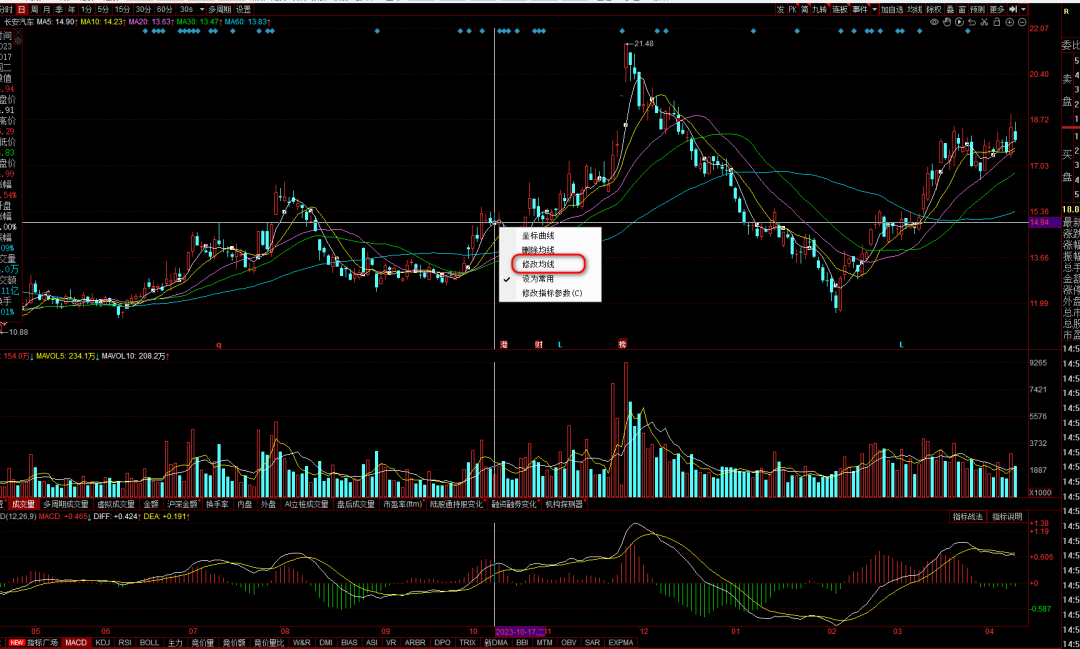

1、随便点击哪根均线，然后修改均线：

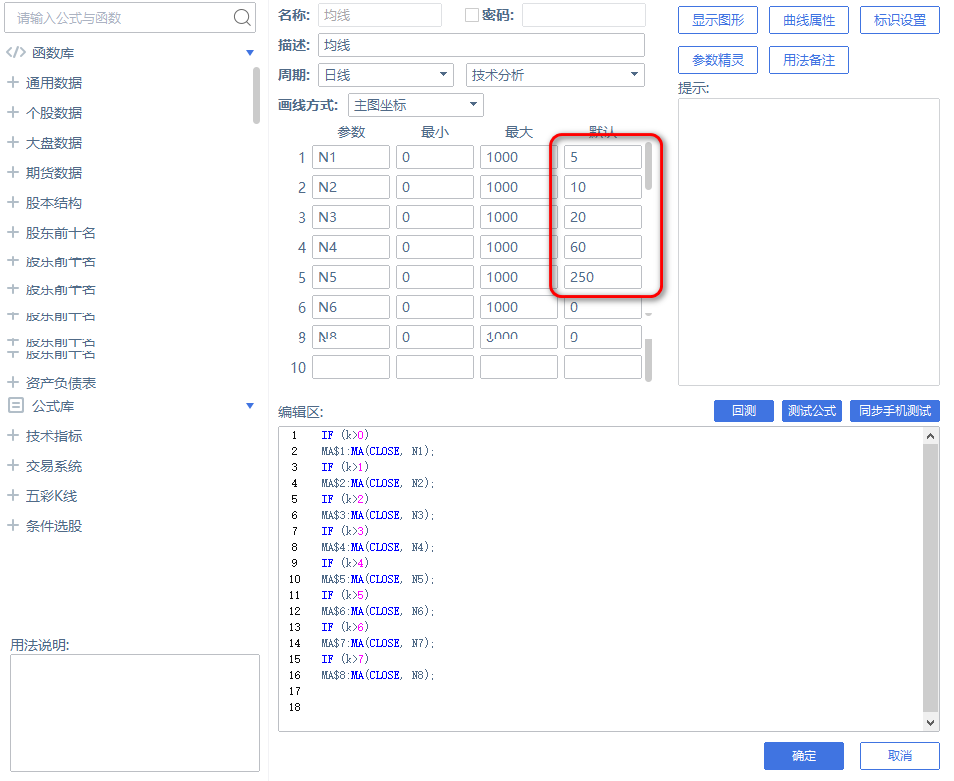

2、设置参数：

3、指标源码

IF (k>0)

MA$1:MA(CLOSE, N1);

IF (k>1)

MA$2:MA(CLOSE, N2);

IF (k>2)

MA$3:MA(CLOSE, N3);

IF (k>3)

MA$4:MA(CLOSE, N4);

IF (k>4)

MA$5:MA(CLOSE, N5);

IF (k>5)

MA$6:MA(CLOSE, N6);

IF (k>6)

MA$7:MA(CLOSE, N7);

IF (k>7)

MA$8:MA(CLOSE, N8);

DRAWTEXT_FIX(1,0.06,0.02,0,'行业:'+BLOCK(0,0)+'/'+BLOCK(1,0)),colormagenta;

DRAWTEXT_FIX(1,0.24,0.02,0,'地域:'+BLOCK(2,0)),colorlimagenta;

DRAWTEXT_FIX(1,0.06,0.07,0,'概念:'+BLOCK(3,25)),colorcyan;

DRAWTEXT_FIX(ISLASTBAR,0.33,0.02,0,'实际流通:'+TOSTRING(ZYLTGB*C/100000000,1)+"亿"),coloryellow;

上涨家数:=INDEXDATA("1A0002",&RISECOUNT) + INDEXDATA("399002",&RISECOUNT);

下跌家数:=INDEXDATA("1A0002",&FALLCOUNT) + INDEXDATA("399002",&FALLCOUNT);

DRAWTEXT_FIX(ISLASTBAR,0.46,0.02,0,"上涨："+TOSTRING(上涨家数,0)),colorred;

DRAWTEXT_FIX(ISLASTBAR,0.52,0.02,0,"下跌："+TOSTRING(下跌家数,0)),colorgreen;

涨停:=INDEXDATA("1A0002",&RISELIMITCOUNT)+INDEXDATA("399002",&RISELIMITCOUNT);

跌停:=INDEXDATA("1A0002",&FALLLIMITCOUNT)+INDEXDATA("399002",&FALLLIMITCOUNT);

DRAWTEXT_FIX(ISLASTBAR,0.62,0.02,0,"涨停："+TOSTRING(涨停,0)),colorlired;

DRAWTEXT_FIX(ISLASTBAR,0.68,0.02,0,"跌停："+TOSTRING(跌停,0)),colorliblue;

DRAWTEXT_FIX(ISLASTBAR,0.75,0.02,0,'昨交:'+TOSTRING(REF(MONEY/100000000,1),2)+"亿"),coloryellow;

C2:=REF(C,1);

涨停:=IF((C-C2)*100/C2>=(10-0.01*100/C2),1,0);

STICKLINE(涨停,OPEN,CLOSE,10,0),colormagenta;

STICKLINE(涨停,H,L,0,0),colormagenta;

跌停:=IF((C2-C)*100/C2>=(10-0.01*100/C2),1,0);

STICKLINE(跌停,OPEN,CLOSE,10,0),colorgreen;

STICKLINE(跌停,H,L,0,1),colorgreen;
